Control Fan, Heater, GLCD Interface using pic16f887


minhrung
 Share

Recommended Posts

Request: I have 2 devices is the fan (motor) and heater (light). When the temperature of the room above the preset temperature (Ref stamps), the fan works, heater off. In contrast, the fan is turned off and open heater. The user interface is displayed on the GLCD. Ref temperature is adjusted via two buttons are connected via RB0, RB1, LM35 connected RA0, fan connection RB6, RB7 heater, GLCD connected to PORTD.

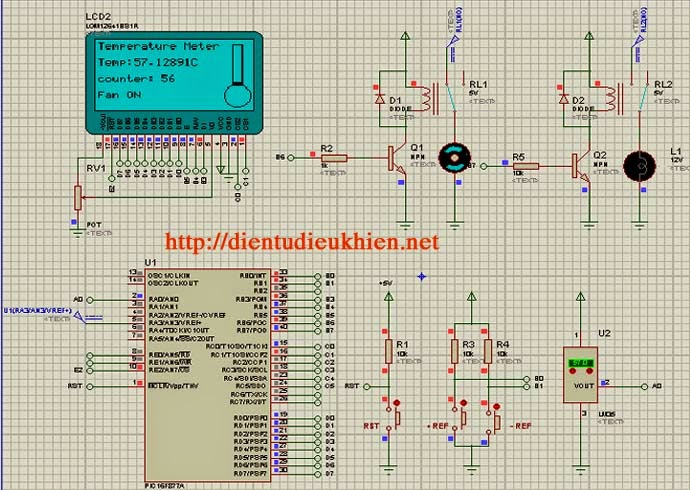

Diagram circuit:




|| Download file in mikroc and protues





--------------------------------------------------------------------------------
